7  Optima

It is not enough to do your best; you must know what to do, and then do your best.
–W. Edwards Deming

In applied mathematics we are often not interested in all solutions of a problem but in the optimal solution. Optimization therefore permeates many areas of mathematics and science. In this section we will look at a few examples of optimization problems and the numerical methods that can be used to solve them.

Exercise 7.1 Here is an atypically easy optimisation problem that you can quickly do by hand:

A piece of cardboard measuring 20cm by 20cm is to be cut so that it can be folded into a box without a lid (see Figure 7.1). We want to find the size of the cut, \(x\), that maximizes the volume of the box.

  1. Write a function \(V(x)\)for the volume of the box resulting from a cut of size \(x\). What is the domain of your function?

  2. We know that we want to maximize this function so go through the full Calculus exercise to find the maximum:

    • take the derivative \(V'(x)\)

    • set it to zero to find the critical points

    • determine the critical point that gives the maximum volume

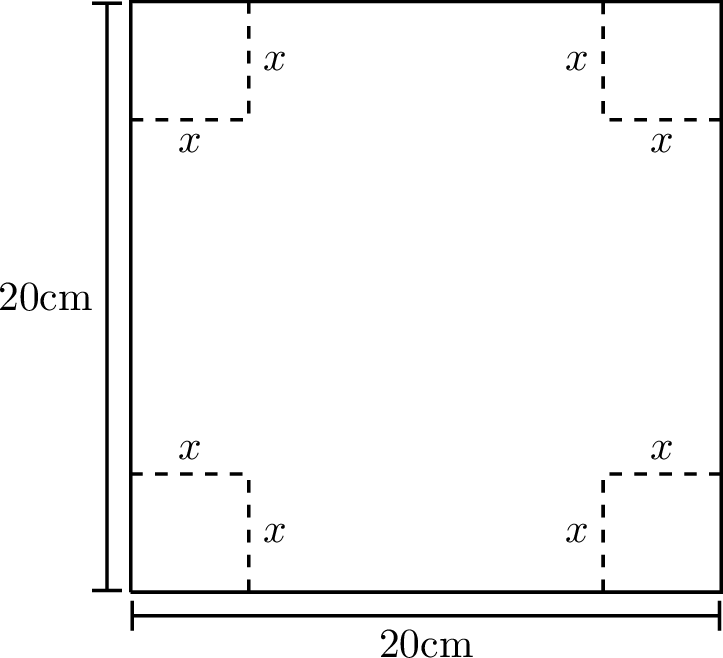

Figure 7.1: Folds to make a cardboard box

An optimization problem is approached by first writing the quantity you want to optimize as a function of the parameters of the model. In the previous exercise that was the function \(V(x)\) that gives the volume of the box as a function of the parameter \(x\), which was the length of the cut. That function then needs to be maximized (or minimized, depending on what is optimal).

Exercise 7.2 In the previous example it was easy to find the value of \(x\) that maximized the function analytically However, in many cases it is not so easy. The equation for the parameters that arises from setting the derivatives to zero is usually not solvable analytically. In these cases we need to use numerical methods to find the extremum. Take for example the function \[f(x) = e^{-x^2} + \sin(x^2)\] on the domain \(0 \le x \le 1.5\). The maximum of this function on this domain can not be determined analytically.

Use Python to make a plot of this function over this domain. You should get something similar to the graph shown in Figure 7.2. What is the \(x\) that maximizes the function on this domain? What is the \(x\) that minimizes the function on this domain?

Graph of example function

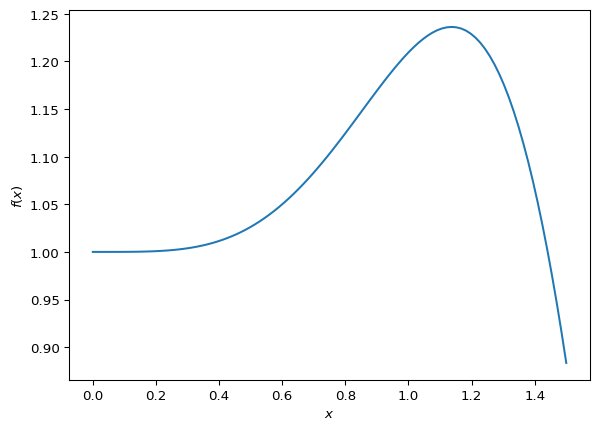

Figure 7.2: Graph of the function \(f(x) = e^{-x^2} + \sin(x^2)\).

The intuition behind numerical optimization schemes is typically to visualize the function as representing a landscape on which you are trying to walk to the highest or lowest point. You however can only sense your immediate neighbourhood and need to use that information to make decisions about where to walk next.

Exercise 7.3 If you were blind folded and standing on a hillside, could you find the top of the hill? (assume no trees and no cliffs …this is not supposed to be dangerous) How would you do it? Explain your technique clearly.

Exercise 7.4 If you were blind folded and standing on a crater on the moon could you find the lowest point? How would you do it? Remember that you can hop as far as you like … because gravity … but sometimes that’s not a great thing because you could hop too far.

Clearly there is no difference between finding the maximum of a function and finding the minimum of a function. The maximum of a function \(f\) is exactly at the same point as the minimum of the function \(-f\). For concreteness we will from now on focus on finding the minimum of a function.

7.1 Single Variable Optimization

The preceding thought exercises have given you intuition about finding extrema in a two-dimensional landscape. But first we will reduce back to one-dimensional optimization problems before generalising to multiple dimensions in the next section.

Exercise 7.5 Did you come up with ideas in the previous two exercises for how you would go about finding a minimum or maximum of a function \(f(x)\)? If so, try to turn your ideas into step-by-step algorithms which could be coded. Then try out your codes on the function \[\begin{equation} f(x) = -e^{-x^2} - \sin(x^2) \end{equation}\] to see if your algorithms can find the local minimum near \(x \approx 1.14\). Try to generate several different algorithms.

One obvious method would be to simply evaluate the function at many points and choose the smallest value. This is called a brute force search.

import numpy as np
x = np.linspace(0,1.5,1000)
f = -np.exp(-x**2) - np.sin(x**2)
print(x[np.argmin(f)])

This method is not very efficient. Just think about how often you would need to evaluate the function for the above approach to give the answer to 12 decimal places. It would be a lot! Your method should be more efficient.

The advantage of this brute force method is that it is guaranteed to find the global minimum in the interval. Any other, more efficient method can get stuck in local minima.

7.1.2 Gradient Descent

Let us next explore the intuitive method of simply taking steps in the downhill direction. That should eventually bring us to a local minimum. The problem is only to know how to choose the step size and the direction. The gradient descent method is a simple and effective way to do this. By making the step be proportional to the negative gradient of the function we are guaranteed to be moving in the right direction and we are also automatically reducing the step size as we get closer to the minimum where the gradient gets smaller.

Let \(f(x)\) be the objective function which you are seeking to minimize.

  • Find the derivative of your objective function, \(f'(x)\).

  • Pick a starting point, \(x_0\).

  • Pick a small control parameter, \(\alpha\) (in machine learning this parameter is called the “learning rate” for the gradient descent algorithm).

  • Use the iteration \(x_{n+1} = x_n - \alpha f'(x_n)\).

  • Iterate (decide on a good stopping rule)

Exercise 7.9 What is the Gradient Ascent/Descent algorithm doing geometrically? Draw a picture and be prepared to explain to your peers.

Exercise 7.10 🎓 Write code to implement the 1D gradient descent algorithm and use it to solve Exercise 7.1. Compare your answer to the analytic solution.

def gradient_descent(df, x0, learning_rate,
                     tol = 1e-12, max_iter=10000):
    """
    Find an approximation of a local minimum of a function f
    using the gradient descent method.

    The function iteratively updates the current guess `x0`
    by moving in the direction of the negative gradient
    of `f` at `x0` multiplied by `alpha`.
    The process stops when the magnitude of the gradient
    is smaller than `tol`.

    Parameters:
    df (function): The derivative of the function you
                   want to minimize.
    x0 (float): The initial guess for the minimum.
    learning_rate (float): The learning rate multiplies the
                           gradient to give the step size.
    tol (float): The tolerance for the convergence.
                 The function stops when |df(x0)| < tol.
    max_iter (int): The maximum number of iterations to perform.

    Returns:
    float: An approximation of a point where f achieves
           a local minimum.
    """
    # Initialize x with the starting value
    x = x0
    # Loop for a maximum of `max_iter` iterations
    for i in range(max_iter):
        # Calculate the step size by multiplying the learning
        # rate with the derivative at the current guess

        # Update `x` by subtracting the step

        # If the step size was smaller than `tol` then
        # return the new `x`

    # If the loop finishes without returning then print a
    # warning that the last step size was larger than `tol`.

    # Return the last `x` value

Exercise 7.11 Compare an contrast the methods you came up with in Exercise 7.5 with the methods proposed in Exercise 7.8 and Exercise 7.10.

  1. What are the advantages to each of the methods proposed?

  2. What are the disadvantages to each of the methods proposed?

  3. Which method, do you suppose, will be faster in general? Why?

  4. Which method, do you suppose, will be slower in general? Why?

Exercise 7.12 Make a plot of the log of the absolute error at iteration \(k+1\) against the log of the absolute error at iteration \(k\), similar to Figure 4.5, for several methods and several choices of function. What do you observe?

Exercise 7.13 🎓 Modify your code from Exercise 7.12 so that it prints out the slope and intercept of the best-fit line to the graph. Then use this with the function \(f(x)=\cos(x)\) with starting value \(x_0=3\) and learning rate \(0.1\) and tolerance \(10^{-12}\).

Exercise 7.14 🎓 Try out your algorithms to find the minimum of the function \[f(x) = (\sin(4x)+1)((x-5)^2-25)\] on the domain \(0 \le x \le 8\).

Code
import numpy as np
import matplotlib.pyplot as plt
f = lambda x: (np.sin(4*x)+1)*((x-5)**2-25)
x = np.linspace(0,8,100)
plt.plot(x,f(x))
Graph of example function

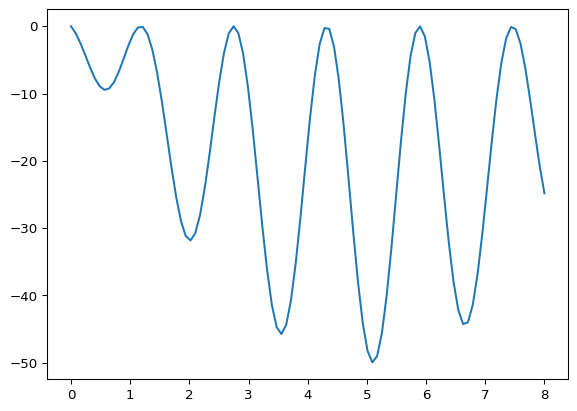

Figure 7.3: Graph of the function \(f(x) = (\sin(4x)+1)((x-5)^2-25)\).

If you choose \(x_0=3\) as your starting point and a learning rate of \(0.001\), what approximation do you get for \(x\) at the minimum?

Exercise 7.15 🎓 Experiment with different values of the learning rate for the previous question, assuming that you can only specify it with up to 3 digits after the decimal point. Which choice of learning rate requires the smallest number of steps for the required tolerance of \(10^{-12}\)?

7.2 Multivariable Optimization

Now let us look at multi-variable optimization. The idea is the same as in the single-variable case. We want to find the minimum of a function \(f(x_1, x_2, \ldots, x_n)\). Such higher-dimensional problems are very common and the dimension \(n\) can be very large in practical problems. A good example is the loss function of a neural network which is a function of the weights and biases of the network. In a large language model the loss function is a function of many billions of variables and the training of the model is a large optimization problem.

Here is a two-variable example: Find the minimum of the function \[f(x,y) = \sin(x)\exp\left(-\sqrt{x^2+y^2}\right)\]

Code
import numpy as np
import plotly.graph_objects as go

f = lambda x, y: np.sin(x)*np.exp(-np.sqrt(x**2+y**2))

# Generating values for x and y
x = np.linspace(-2, 2, 100)
y = np.linspace(-1, 3, 100)

X, Y = np.meshgrid(x, y)
Z = f(X, Y)

# Creating the plot
fig = go.Figure(data=[go.Surface(z=Z, x=X, y=Y)])
fig.update_layout(width=800, height=800)
(a) Graph of the function \(\sin(x)\exp\left(-\sqrt{x^2+y^2}\right)\).
(b)
Figure 7.4

Finding the minima of multi-variable functions is a bit more complicated than finding the minima of single-variable functions. The reason is that there are many more directions in which to move. But the basic intuition that we want to move downhill to move towards a minimum of course still works. The gradient descent method is still a good choice for finding the minimum of a multi-variable function. The only difference is that the gradient is now a vector and the step is in the direction of the negative gradient.

Exercise 7.16 In your group, answer each of the following questions to remind yourselves of multivariable calculus.

  1. What is a partial derivative (explain geometrically). For the function \(f(x,y) = \sin(x)\exp\left(-\sqrt{x^2+y^2}\right)\) what is \(\frac{\partial f}{\partial x}\) and what is \(\frac{\partial f}{\partial y}\)?

  2. What is the gradient of a function? What does it tell us physically or geometrically? If \(f(x,y) = \sin(x)\exp\left(-\sqrt{x^2+y^2}\right)\) then what is \(\nabla f\)?

Below we will give the full description of the gradient descent algorithm.

7.2.1 Gradient Descent Algorithm

We want to solve the problem \[\begin{equation} \text{minimize } f(x_1, x_2, \ldots, x_n) \text{ subject to }(x_1, x_2, \ldots, x_n) \in S. \end{equation}\]

  1. Choose an arbitrary starting point \(\boldsymbol{x}_0 = (x_1,x_2,\ldots,x_n)\in S\).

  2. We are going to define a difference equation that gives successive guesses for the optimal value: \[\begin{equation} \boldsymbol{x}_{n+1} = \boldsymbol{x}_n - \alpha \nabla f(\boldsymbol{x}_n). \end{equation}\] The difference equation says to follow the negative gradient a certain distance from your present point (why are we doing this). Note that the value of \(\alpha\) is up to you so experiment with a few values (you should probably take \(\alpha \le 1\) …why?).

  3. Repeat the iterative process in step 2 until two successive points are close enough to each other.

Exercise 7.17 Write code to implement the gradient descent algorithm for a function \(f(x,y)\).

def gradient_descent_2d(df, x0, learning_rate, tol=1e-12, max_iter=10000):
    """
    Finds an approximation of a local minimum of a 2D function using
    gradient descent.

    Parameters:
    df (function): A function that returns the gradient of the function to
                   minimize. It should take a NumPy array with two elements
                   as input and return a NumPy array with two elements
                   representing the gradient.
    x0 (NumPy array): The initial guess for the minimum
                      (a NumPy array with two elements).
    learning_rate (float): The learning rate (step size multiplier).
    tol (float): Tolerance for convergence
                 (stops when the magnitude of the step is below this).
    max_iter (int): Maximum number of iterations.

    Returns:
    NumPy array: The approximated minimum point
                 (a NumPy array with two elements).
    """

    # Here comes your code.

You can build on your code for the single-variable gradient descent from Exercise 7.10.

Use your function to find the minimum of the function \[f(x,y) = \sin(x)\exp\left(-\sqrt{x^2+y^2}\right).\] with a starting point \((x_0,y_0)=(-1,1)\), a learning rate of \(1\) and a tolerance of \(10^{-6}\).

Then find the minimum of the same function with a starting point a starting point \((x_0,y_0)=(0,0)\), using the same learning rate of \(1\) and tolerance of \(10^{-6}\).

Exercise 7.18 How much more complicated would your function have to be to work for a function of \(n\) arguments for an arbitrary \(n\)?

It is annoying that one needs to first work out the gradient function by hand before one can use the gradient descent algorithm. This is especially annoying when the function is very complicated. It would be better to use automatic differentiation. If you followed the material on automatic differentiation you will know how to do that.

Of course there are many other methods for finding the minimum of a multi-variable function. An important method that does not need the gradient of the function is the Nelder-Mead method. This method is a direct search method that only needs the function values at the points it is evaluating. The method is very robust and is often used when the gradient of the function is not known or is difficult to calculate. There are also clever variants of the gradient descent method that are more efficient than the basic method. The Adam and RMSprop algorithms are two such methods that are used in machine learning. This subject is a large and active area of research and we will not go into more detail here.

7.3 Optimization with SciPy

You have already seen that there are many tools built into the NumPy and SciPy libraries that will do some of our basic numerical computations. The same is true for numerical optimization problems. Keep in mind throughout the remainder of this section that the whole topic of numerical optimization is still an active area of research and there is much more to the story than what we will see here. However, the Python tools provided by scipy.optimize are highly optimized and tend to work quite well.

Exercise 7.19 Let us solve a very simple function minimization problem to get started. Consider the function \(f(x) = (x-3)^2 - 5\). A moment’s thought reveals that the global minimum of this parabolic function occurs at \((3,-5)\). We can have scipy.optimize.minimize() find this value for us numerically. The routine is much like Newton’s Method in that we give it a starting point near where we think the optimum will be and it will iterate through some algorithm (like a derivative free optimization routine) to approximate the minimum.

import numpy as np
from scipy.optimize import minimize
f = lambda x: (x-3)**2 - 5
minimize(f,2)

  1. Implement the code above then spend some time playing around with the minimize command to minimize more challenging functions.

  2. Consult the help page and explain what all of the output information is from the minimize() command.

7.4 Algorithm Summaries

Exercise 7.20 Explain in clear language how the Golden Section Search method works.

Exercise 7.21 Explain in clear language how the Gradient Descent method works.

7.5 Problems

Exercise 7.22 For each of the following functions write code to numerically approximate the local maximum or minimum that is closest to \(x=0\). You may want to start with a plot of the function just to get a feel for where the local extreme value(s) might be.

  1. \(\displaystyle f(x) = \frac{x}{1+x^4} + \sin(x)\)

  2. \(\displaystyle g(x) = \left(x-1\right)^3\cdot\left(x-2\right)^2+e^{-0.5\cdot x}\)

Exercise 7.23 (This exercise is modified from (Meerschaert 2013))
A pig weighing 200 pounds gains 5 pounds per day and costs 45 cents a day to keep. The market price for pigs is 65 cents per pound, but is falling 1 cent per day. When should the pig be sold to maximize the profit?

Write the expression for the profit \(P(t)\) as a function of time \(t\) and maximize this analytically (by hand). Then solve the problem with all three methods outlined in Section 7.1.

Exercise 7.24 (This exercise is modified from (Meerschaert 2013))
Reconsider the pig Exercise 7.23 but now suppose that the weight of the pig after \(t\) days is \[\begin{equation} w = \frac{800}{1+3e^{-t/30}} \text{ pounds}. \end{equation}\] When should the pig be sold and how much profit do you make on the pig when you sell it? Write this situation as a single variable mathematical model. You should notice that the algebra and calculus for solving this problem is no longer really a desirable way to go. Use an appropriate numerical technique to solve this problem.

Exercise 7.25 Go back to your old Calculus textbook or homework and find your favourite optimization problem. State the problem, create the mathematical model, and use any of the numerical optimization techniques in this chapter to get an approximate solution to the problem.

Exercise 7.26 (The Goat Problem) This is a classic problem in recreational mathematics that has a great approximate solution where we can leverage some of our numerical analysis skills. Grab a pencil and a piece of paper so we can draw a picture.

  • Draw a coordinate plane

  • Draw a circle with radius 1 unit centred at the point \((0,1)\). This circle will obviously be tangent to the \(x\) axis.

  • Draw a circle with radius \(r\) centred at the point \((0,0)\). We will take \(0 < r < 2\) so there are two intersections of the two circles.

    • Label the left-hand intersection of the two circles as point \(A\). (Point \(A\) should be in the second quadrant of your coordinate plane.)

    • Label the right-hand intersection of the circles as point \(B\). (Point \(B\) should be in the first quadrant of your coordinate plane.)

  • Label the point \((0,0)\) as the point \(P\).

A rancher has built a circular fence of radius 1 unit centred at the point \((0,1)\) for his goat to graze. He tethers his goat at point \(P\) on the far south end of the circular fence. He wants to make the length of the goat’s chain, \(r\), just long enough so that it can graze half of the area of the fenced region. How long should he make the chain?

Hints:

  • It would be helpful to write equations for both circles. Then you can use the equations to find the coordinates of the intersection points \(A\) and \(B\).

    • You can either solve for the intersection points algebraically or you can use a numerical root finding technique to find the intersection points.

    • In any case, the intersection points will (obviously) depend on the value of \(r\)

  • Set up an integral to find the area grazed by the goat.

    • You will likely need to use a numerical integration technique to evaluate the integral.

  • Write code to narrow down on the best value of \(r\) where the integral evaluates to half the area of the fenced region.

7.6 Projects

In this section we propose several ideas for projects related to numerical optimisation. These projects are meant to be open ended, to encourage creative mathematics, to push your coding skills, and to require you to write and communicate your mathematics.

7.6.1 Edge Detection in Images

Edge detection is the process of finding the boundaries or edges of objects in an image. There are many approaches to performing edge detection, but one method that is quite robust is to use the gradient vector in the following way:

  • First convert the image to gray scale.

  • Then think of the gray scale image as a plot of a multivariable function \(G(x,y)\) where the ordered pair \((x,y)\) is the pixel location and the output \(G(x,y)\) is the value of the gray scale at that point.

  • At each pixel calculate the gradient of the function \(G(x,y)\) numerically.

  • If the magnitude of the gradient is larger than some threshold then the function \(G(x,y)\) is steep at that location and it is possible that there is an edge (a transition from one part of the image to a different part) at that point. Hence, if \(\|\nabla G(x,y)\| > \delta\) for some threshold \(\delta\) then we can mark the point \((x,y)\) as an edge point.

Your Tasks:

  1. Choose several images on which to do edge detection. You should take your own images, but if you choose not to be sure that you cite the source(s) of your images.

  2. Write Python code that performs edge detection as described above on the image. In the end you should produce side-by-side plots of the original picture and the image showing only the edges. To calculate the gradient use a centred difference scheme for the first derivatives \[\begin{equation} f'(x) \approx \frac{f(x+h)-f(x-h)}{2h}. \end{equation}\] In an image we can take \(h=1\) (why?), and since the gradient is two dimensional we get \[\begin{equation} \nabla G(x,y) \approx \left< \frac{G(x+1,y)-G(x-1,y)}{2} \, , \, \frac{G(x,y+1)-G(x,y-1)}{2} \right>. \end{equation}\] Figure 7.5 depicts what this looks like when we zoom in to a pixel and its immediate neighbours. The pixel labelled G[i,j] is the pixel at which we want to evaluate the gradient, and the surrounding pixels are labelled by their indices relative to [i,j].

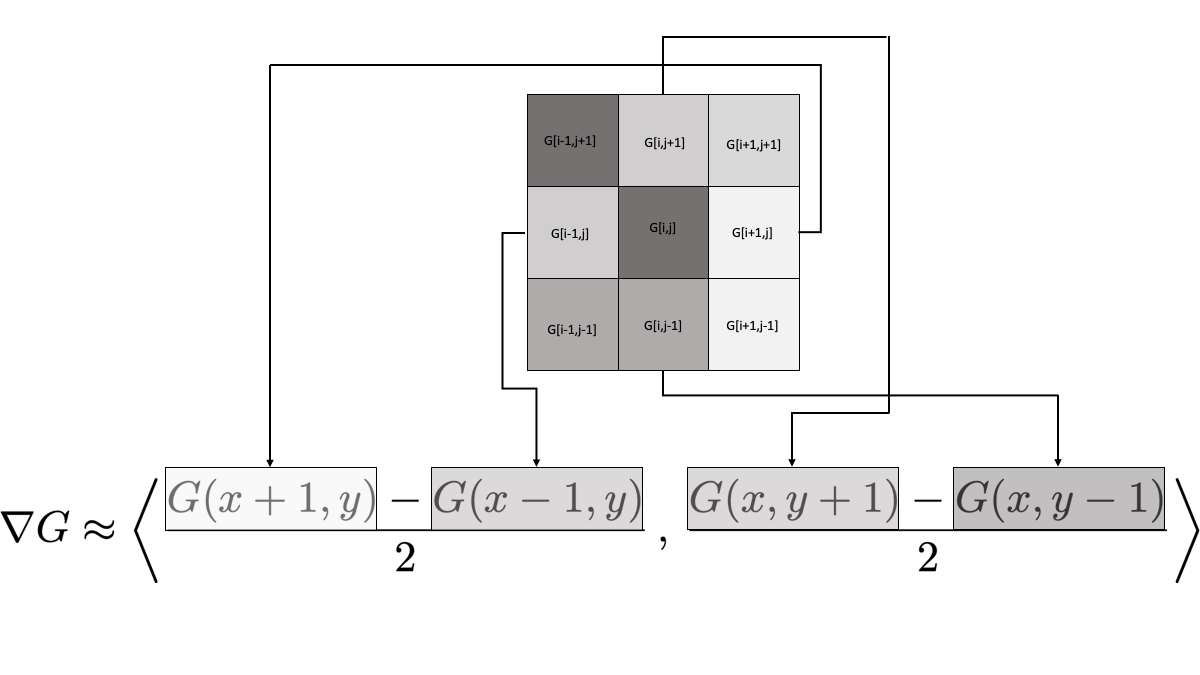

Figure 7.5: The gradient computation on a single pixel using a central difference scheme for the first derivative.
  1. There are many ways to approximate numerical first derivatives. The simplest approach is what you did in part (2) – using a centred difference scheme. However, pixels are necessarily tightly packed in an image and the immediate neighbours of a point may not have enough contrast to truly detect edges. If you examine Figure 7.5 you will notice that we only use 4 of the 8 neighbours of the pixel [i,j]. Also notice that we did not reach out any further than a single pixel. Your job now is to build several other approaches to calculating the gradient vector, implement them to perform edge detection, and show the resulting images. For each method you need to give the full mathematical details for how you calculated the gradient as well as give a list of pros and cons for using the new numerical gradient for edge detection based on what you see in your images. As an example, you could use a centred difference scheme that looks two pixels away instead of at the immediate neighbouring pixels \[\begin{equation} f'(x) \approx \frac{??? f(x-2) + ??? f(x+2)}{???}. \end{equation}\] Of course you would need to determine the coefficients in this approximation scheme.
    Another idea could use a centred difference scheme that uses pixels that are immediate neighbours AND pixels that are two units away \[\begin{equation} f'(x) \approx \frac{??? f(x-2) + ??? f(x-1) + ??? f(x+1) + ??? f(x+2)}{???}. \end{equation}\]
    In any case, you will need to use Taylor Series to derive coefficients in the formulas for the derivatives as well as the order of the error. There are many ways to approximate the first derivatives so be creative. In your exploration you are not restricted to using just the first derivative. There could be some argument for using the second derivatives and/or the Hessian matrix of the gray scale image function \(G(x,y)\) and using some function of the concavity as a means of edge detection. Explore and have fun!

The following code will allow you to read an image into Python as an np.array().

import numpy as np
import matplotlib.pyplot as plt
from matplotlib import image
I = np.array(image.plt.imread('ImageName.jpg'))
plt.imshow(I)
plt.axis("off")
plt.show()

You should notice that the image, I, is a three dimensional array. The three layers are the red, green, and blue channels of the image. To flatten the image to gray scale you can apply the rule \[\begin{equation} \text{grayscale value} = 0.3 \text{Red} + 0.59 \text{Green} + 0.11 \text{Blue}. \end{equation}\] The output should be a 2 dimensional numpy array which you can show with the following Python code.

plt.imshow(G, cmap='gray') # "cmap" stands for "color map"
plt.axis("off")
plt.show()

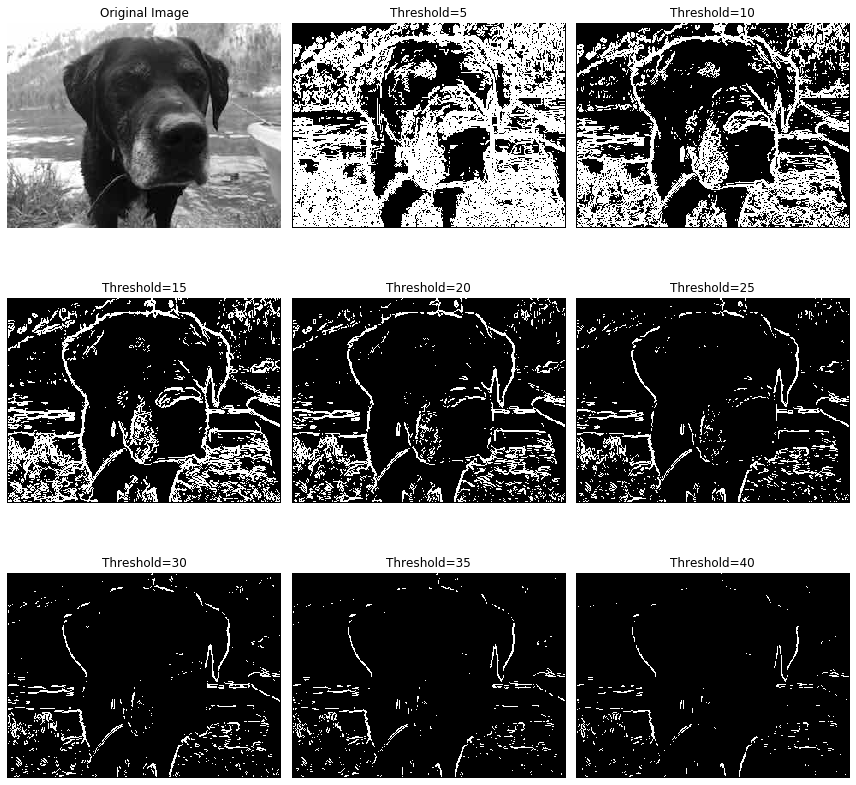

Figure 7.6 shows the result of different threshold values applied to the simplest numerical gradient computations. The image was taken by the author.

Figure 7.6: Edge detection using different thresholds for the value of the gradient on the grayscale image
Meerschaert, Mark. 2013. Mathematical Modeling. 4th edition. Amsterdam ; Boston: Academic Press.
